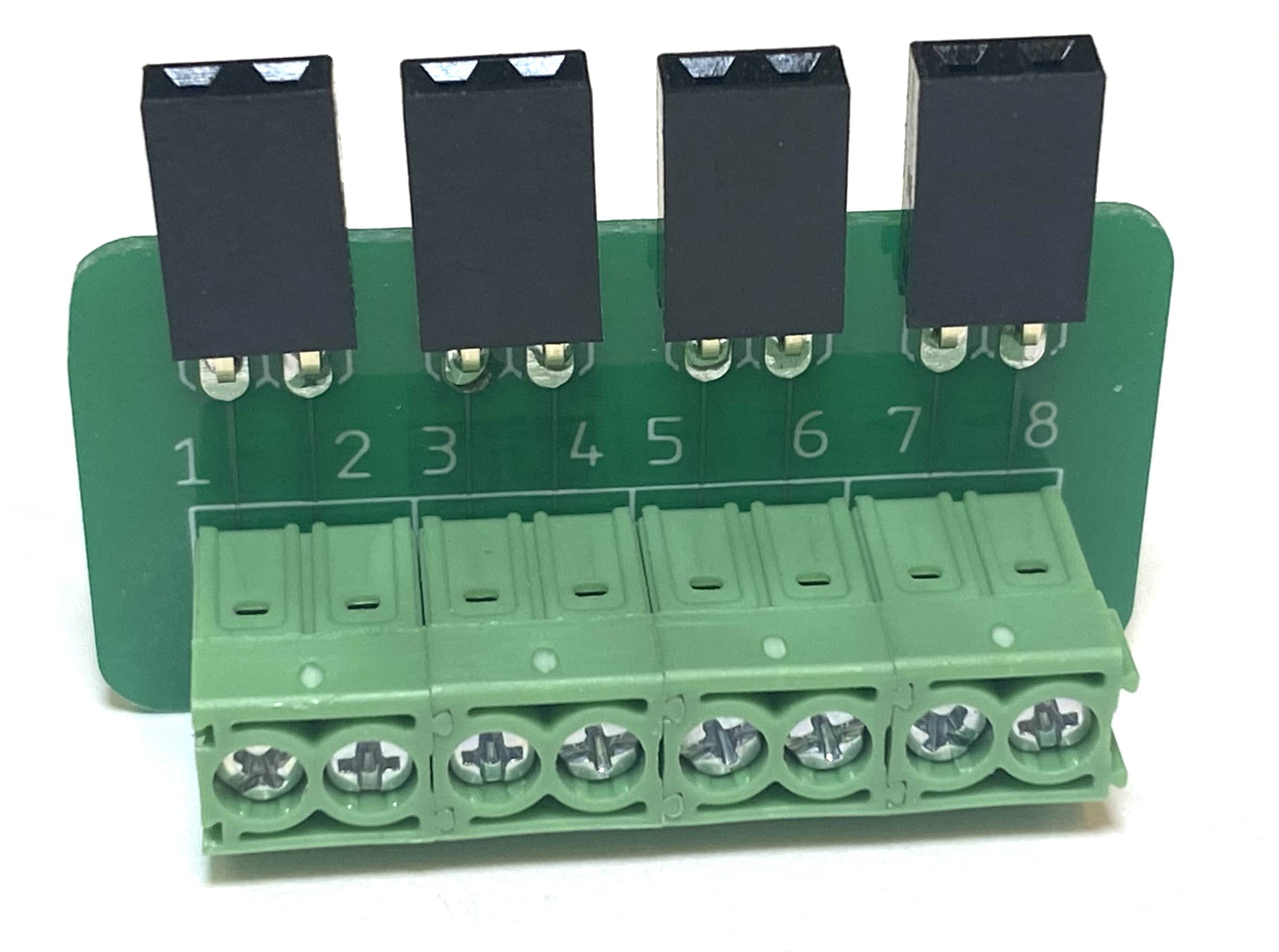

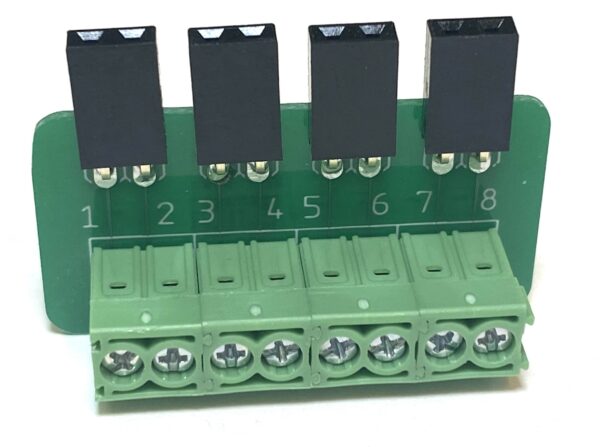

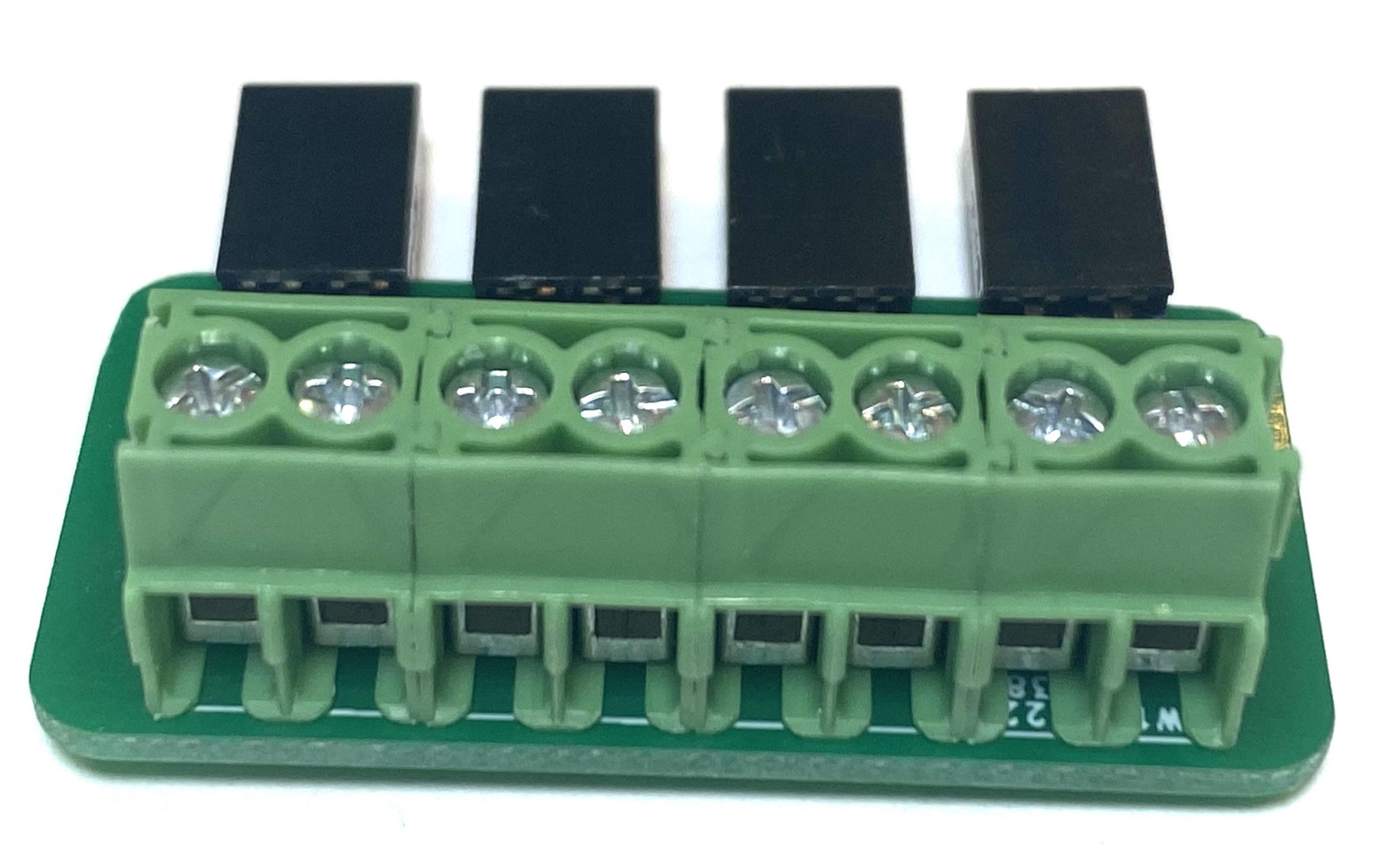

Use this connector to attached Detector Lead Wires lead wires to the Fiber Lighting Controller. The detector ports are labelled 1 to 8. If you want to connect LEDs to the LED Scene Controller you want to use the JST to Terminal LED connector.

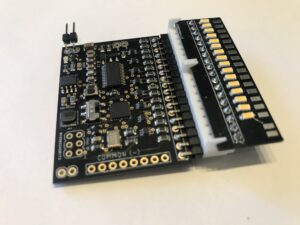

This is the same as the other LED test board except this board has FOUR different color LEDs: 2k,3k,5k and 6.5k. Use this TEST board to help program the LSC before it is installed. No soldering needed.
