HO Train Sense Light Board wt decoder 264mm

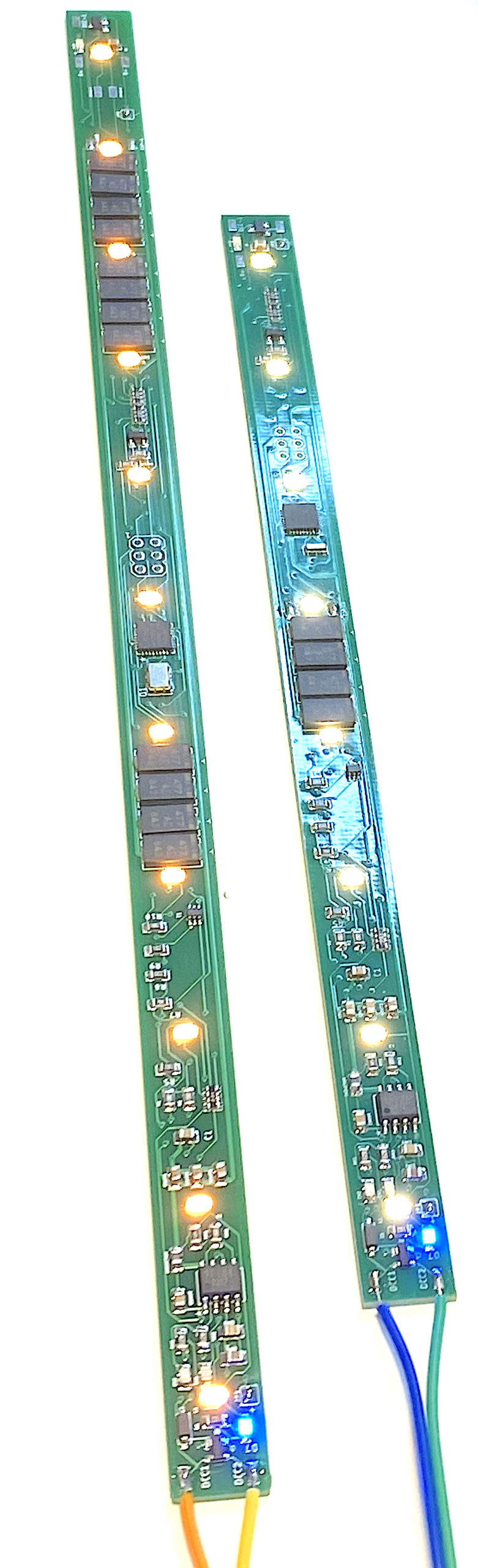

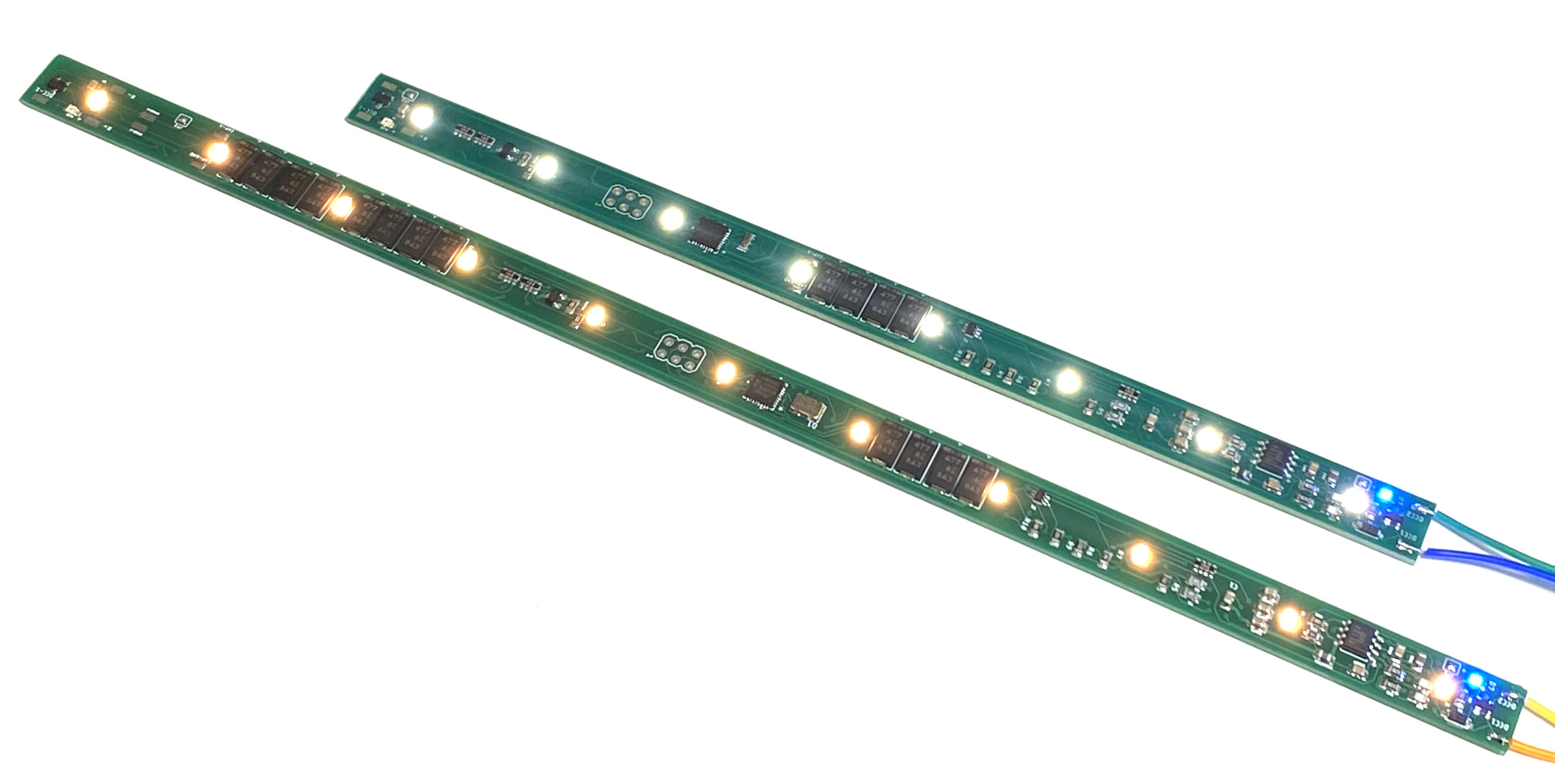

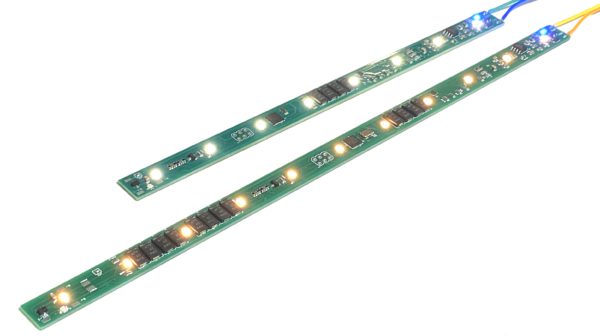

This is an LED light board with DCC decoder. It has 11 LED ligths and can be order with one of 4 ‘bulb’ colors.

HO-264-00 ,

. With all 12 installed you get a whopping 5,640uF that really help “Keep the Lights On”.- which means that the car will stay lit even over completely dead switch frogs.  We’ve been continuously updating and refining this FLAGSHIP product.  We’ve added a remote magnet reset switch so you don’t have to take the car appart to reset the board – should things ever come to that.  We’ve upgrade the CPU to add more capacity with more special effects, more coming soon.  The board is software upgrade -able.  so when we have new features you can have you board upgraded at only the cost of postage.

We did not raise the price of our basic board and are selling the SuperCaps at our cost.  We want you to have a GREAT board and THIS IS IT!

This is the only board in the market where you can customize your options at check out.  Choose how many Capacitors you need and the color white LED that you want.

All boards come with a set of AUX pads so you can install rear end lighting – which is controllable separately form the main cabin lights.  Special effects include Blink and Flicker.  (Coming soon: Mars, Beacon, Blip)

If you have room in your car you can add our SuperCap-8 board which adds another 3,760uF of capacitor storage to help with very dirty track management.

SuperCaps-8 add-on board works ONLY with our LED Series II light boards.  IT WILL NOT WORK CONNECTED TO DCC RAILS.

If your car does NOT have wheel pickups (all KATO cars have them built in) then use our “Floating Brass” wheel pickups.  There are very simple to install and are the best solution we know.  We did not set out to sell brass wheel pickup but of course we needed a good solutions.  WE TRIED EVERYTHING until we stumbled across this super simple and super reliable solutions.  These brass strips are specially etched for the right size, thickness and malleability – from Scotland!

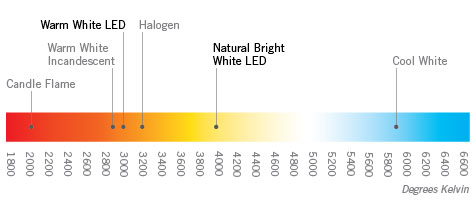

2000k is Soft White (more yellow)
3000k is Warm White ( white)
5000k is Cool White ( Very bright, blue hint)

The board is 10 3/8″ long

(264mm x 11.5mm)


Weight N/A
LED Color

2000K White (Yellowish), 3000K White (Standard White), 5000K White (Florescent), 6500K White (Bright White)
