HO CABOOSE Lighting KIT (2 Lanterns, Chip, Floating Brass, SuperCaps)



HO CABOOSE Lighting KIT (Decoder Board, 2 Lanterns, Floating Brass)


UPDATE – DECEMBER 2020 –   We have decided to only sell the HO Caboose Board/Kit to INCLUDE the SuperCap board.  Therefore the price has increase with just the addition of the board ($12).  After MANY hours of work and installations for customers it just doesn’t make sense to NOT include the board since the performance on the rails is SUBSTANTIALLY different (BETTER).  You will see in the video (to be posted 12/31) that you can pull the caboose off the track and the light will still glow and the market still blink for 2-3 seconds.  This means on the layout the light stays on.  We add several new capabilities – one is “always” on so that you can run on almost any layout (DCC included) and on DCC you don’t have to worry about keep a slot open for the caboose lights – or mess with turning it on or off.


The Kit includes:

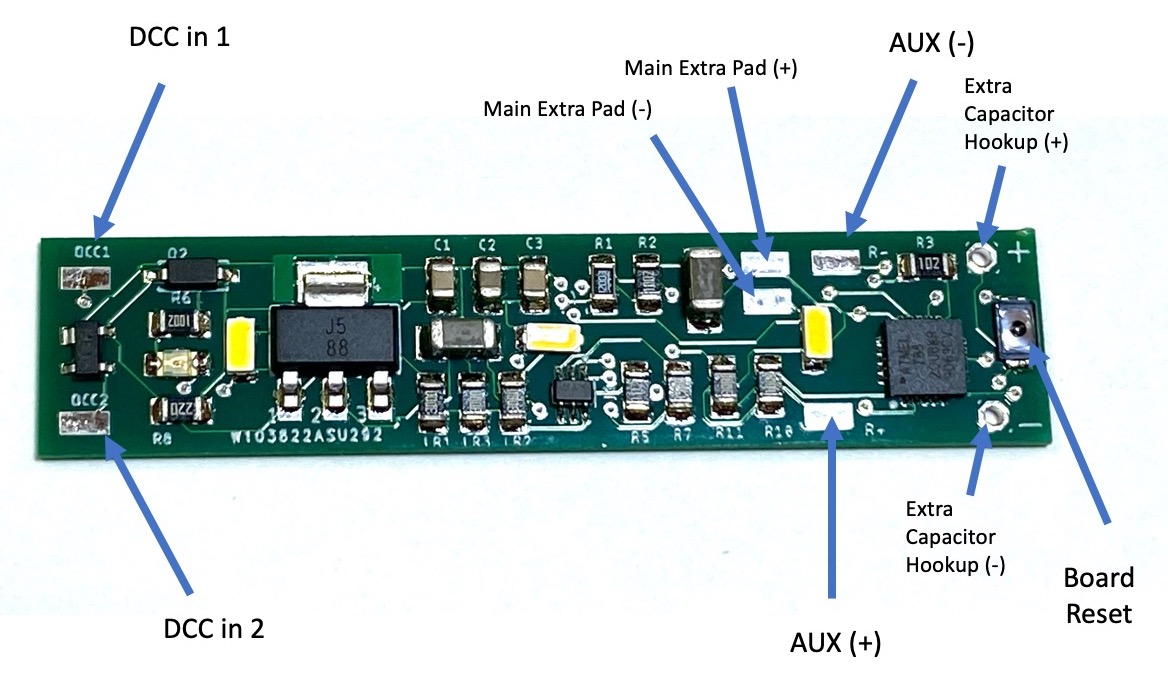

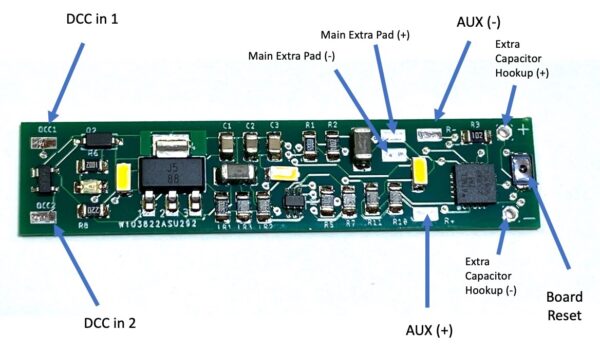

  1.  DCC Decoder Light board with 3 attached white LEDS (2000k or 3000k)
  2.  SuperCap Board
  3. Two  HO Scale Lantern
  4. HO Scale Floating Brass (for electrical pickup)
  5. One LED chip for use in the cupola – connects to the on aboard Decoder pad
  6. Length of 36 AWG connection wire

Demonstration of Caboose board with SuperCap Board installed (piggyback)


LED Color

2000K White (Yellowish), 3000K White (Standard White)
